Single row angular contact ball bearing

Category：

Angular Contact Ball Bearings

+86-18301921252

shbq@bqskfbearing.com

E-mail

Single Row Angular Contact Ball Bearings

Single row angular contact ball bearings are mainly used in situations where both radial and axial combined loads are withstood, and sometimes they can also withstand pure axial loads, with higher rotational speeds.
The material of bearing ring parts shall be high一quality refined bearing steel GCR15 and other grades of bearing steel, and the rolling body shall be made of GCR15 bearing steel or ceramic.

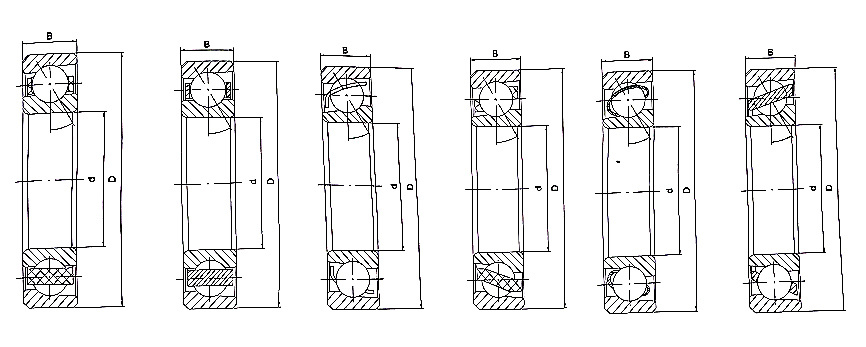

According to different contact angles, bearings can be divided into three types: 7000C (15 °), 7000AC (25 °), 7000AA (26 °), and 7000B (40 °). Bearings with different contact angles can be produced according to user requirements.

Product parameter

型号 Designation		基本尺寸（mm） Principal Dimensions			额定负荷（KN） Basic Load Ratings		极限转速（rpm） Limited Speed		重量
		d	D	B	动负荷	静负荷	脂润滑	油润滑	Mass(Kg)
7800C	一	10	19	5	一	一	一	一	0.005
7000C	一		26	8	4.9	2.1	24000	32000	0.019
7000AC	一		26	8	4.7	2.1	24000	32000	0.019
7200C	一		30	9	5.8	2.9	22000	28000	0.032
7200AC	一		30	9	5.5	2.8	22000	28000	0.032
7200B	7200AA		30	9	5.3	2.7	19000	27000	0.030
7300C	一		35	11	9.8	4.6	18000	26000	0.053
7300AC	一		35	11	9.5	4.4	18000	26000	0.053
7801C	一	12	21	5	一	一	一	一	0.006
7901C	一		24	6	3.3	1.8	28000	36000	0.011
7901AC	一		24	6	3.2	1.7	28000	36000	0.011
7001C	一		28	8	5.4	2.6	22000	28000	0.021
7001AC	一		28	8	5.1	2.4	22000	28000	0.021
7201C	一		32	10	7.9	3.8	20000	25000	0.037
7201AC	一		32	10	7.6	3.6	20000	25000	0.037
7201B	7201AA		32	10	6.9	3.2	18000	24000	0.036
7301C	一		37	12	11.8	5.6	17000	24000	0.060
7301AC	一		37	12	11.5	5.4	17000	24000	0.060
7301B	7301AA		37	12	10.5	4.9	16000	22000	0.060
7802C	一	15	24	5	一	一	一	一	0.007
7902C	一		28	7	4.7	2.6	24000	32000	0.015
7902AC	一		28	7	4.5	2.5	24000	32000	0.015
7002C	一		32	9	6.2	3.3	19000	25000	0.030
7002AC	一		32	9	5.9	3.2	19000	25000	0.030
7202C	一		35	11	9.2	4.9	17000	22000	0.045
7202AC	一		35	11	8.9	4.8	17000	22000	0.045
7202B	7202AA		35	11	7.9	4.2	16000	22000	0.045
7302C	一		42	13	13.2	6.7	15000	21000	0.084
7302AC	一		42	13	12.5	6.2	15000	21000	0.084
7302B	7302AA		42	13	12.4	6.5	14000	19000	0.080

Packaging and delivery

It has grown steadily in the market competition and established a good reputation and credibility in the industry. In the future, Shanghai Baiqi Bearing will continue to uphold the concept of "honest management and excellence", continue to innovate and develop, and create greater value for customers.

Inspection

The company has advanced production equipment and technical teams. Its products cover various types of rolling bearings, deep groove ball bearings, tapered roller bearings and other series, which are widely used in mechanical equipment, automotive industry, aerospace and other fields.

FAQ

Q: What are your payment terms?

A: Payment <= 1000 USD, 100% USD in advance. Payment > = $1000, 30% T/T in advance, balance before delivery.

Q: Do you provide samples? Is it free or extra?

A: Yes, we can provide samples free of charge, but we don't pay for shipping.

Q: What is your lead time?

A: If the goods are in stock, it is usually 5-10 days. Or, if the goods are not in stock, then 15-20 days, it is based on quantity.

Q: Are you a trading company or a manufacturer?

A: We are a factory!
