Double Row Angular Contact Ball Bearings

The design of dual row angular contact ball bearings is basically the same as that of single row angular contact ball bearings, but only takes up less axial space. Double row angular contact ball bearings can withstand radial loads and axial loads acting in both directions. They can limit bidirectional axial displacement of the shaft or housing, with a contact angle of 30 degrees. It can provide a highly rigid bearing configuration and withstand overturning torque.

Category：

Angular Contact Ball Bearings

+86-18301921252

shbq@bqskfbearing.com

E-mail

Single Row Angular Contact Ball Bearings

Product parameter

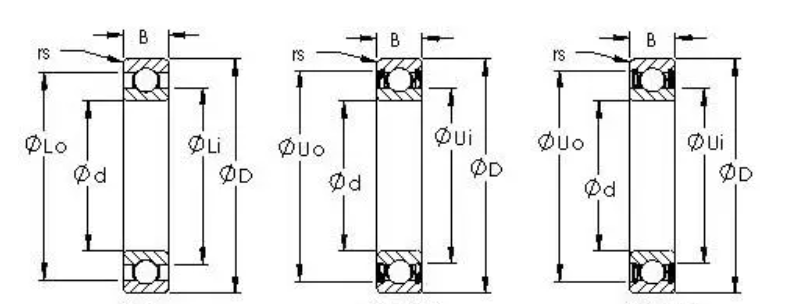

轴承型号 Bearing No.			外形尺寸Dimensions（mm）			额定负荷（KN）		重量
开式基型	防尘型	密封型	d	D	B	Cr	Cor	Mass(kg)
5200	5200一2Z	5200一2RS	10	30	14.3	7.0	3.8	0.049
5201	5201一2Z	5201一2RS	12	32	15.9	9.2	5.1	0.057
5202	5202一2Z	5202一2RS	15	35	15.9	10.0	6.1	0.064
5203	5203一2Z	5203一2RS	17	40	17.5	12.8	7.9	0.096
5204	5204一2Z	5204一2RS	20	47	20.6	19.0	12.1	0.153
5205	5205一2Z	5205一2RS	25	52	20.6	20.6	14.3	0.175
5206	5206一2Z	5206一2RS	30	62	23.8	28.6	20.4	0.286
5207	5207一2Z	5207一2RS	35	72	27	38.0	27.8	0.436
5208	5208一2Z	5208一2RS	40	80	30.2	42.5	32.5	0.590
5209	5209一2Z	5209一2RS	45	85	30.2	48.0	37.0	0.640
5210	5210一2Z	5210一2RS	50	90	30.2	51.0	42.0	0.689
5211	5211一2Z	5211一2RS	55	100	33.3	63.0	53.0	0.986
5212	5212一2Z	5212一2RS	60	110	36.5	71.5	58.5	1.270
5213	5213一2Z	5213一2RS	65	120	38.1	83.5	72.5	1.570
5214	5214一2Z	5214一2RS	70	125	39.7	87.5	79.5	1.800
5215	5215一2Z	5215一2RS	75	130	41.3	90.0	80.5	1.900
5216	5216一2Z	5216一2RS	80	140	44.4	106	95.5	2.390
5217	5217一2Z	5217一2RS	85	150	49.2	112	106	3.060
5218	5218一2Z	5218一2RS	90	160	52.4	140	129	3.730
5219	5219一2Z	5219一2RS	95	170	55.6	163	184	5.100
5220	5220一2Z	5220一2RS	100	180	60.3	210	240	6.140
5300	5300一2Z	5300一2RS	10	35	19	9.2	5.1	0.092
5301	5301一2Z	5301一2RS	12	37	19	10.0	6.1	0.109
5302	5302一2Z	5302一2RS	15	42	19	12.8	7.9	0.132
5303	5303一2Z	5303一2RS	17	47	22.2	20.4	12.1	0.181
5304	5304一2Z	5304一2RS	20	52	22.2	20.6	12.7	0.227
5305	5305一2Z	5305一2RS	25	62	25.4	30.5	20.5	0.362
5306	5306一2Z	5306一2RS	30	72	30.2	39.5	27.5	0.553
5307	5307一2Z	5307一2RS	35	80	34.9	49.5	35.0	0.766
5308	5308一2Z	5308一2RS	40	90	36.5	60.5	44.0	1.010
5309	5309一2Z	5309一2RS	45	100	39.7	72.5	54.0	1.340
5310	5310一2Z	5310一2RS	50	110	44.4	85.5	64.5	1.810
5311	5311一2Z	5311一2RS	55	120	49.2	106	82.0	2.320
5312	5312一2Z	5312一2RS	60	130	54	122	95.5	3.050
5313	5313一2Z	5313一2RS	65	140	58.7	138	109	3.960
5314	5314一2Z	5314一2RS	70	150	63.5	155	125	4.740
5315	5315一2Z	5315一2RS	75	160	68.3	168	141	5.650
5316	5316一2Z	5316一2RS	80	170	68.3	175	151	7.210
5317	5317一2Z	5317一2RS	85	180	73	196	240	8.300
5318	5318一2Z	5318一2RS	90	190	73	225	266	9.015

Packaging and delivery

It has grown steadily in the market competition and established a good reputation and credibility in the industry. In the future, Shanghai Baiqi Bearing will continue to uphold the concept of "honest management and excellence", continue to innovate and develop, and create greater value for customers.

Inspection

The company has advanced production equipment and technical teams. Its products cover various types of rolling bearings, deep groove ball bearings, tapered roller bearings and other series, which are widely used in mechanical equipment, automotive industry, aerospace and other fields.

FAQ

Q: What are your payment terms?

A: Payment <= 1000 USD, 100% USD in advance. Payment > = $1000, 30% T/T in advance, balance before delivery.

Q: Do you provide samples? Is it free or extra?

A: Yes, we can provide samples free of charge, but we don't pay for shipping.

Q: What is your lead time?

A: If the goods are in stock, it is usually 5-10 days. Or, if the goods are not in stock, then 15-20 days, it is based on quantity.

Q: Are you a trading company or a manufacturer?

A: We are a factory!
