31300 series tapered roller bearings

As a famous enterprise in Shandong Province, Shanghai Baiqi Bearing Co., Ltd. founded in 2016, is a set of bearing design, industrial production, marketing and trade in one of the Department of industry and trade enterprise.With the advanced production equipment strong technical force, complete measurement and detection means, it can effectively guarantee the quality of products.

Category：

Tapered roller bearing

+86-18301921252

shbq@bqskfbearing.com

E-mail

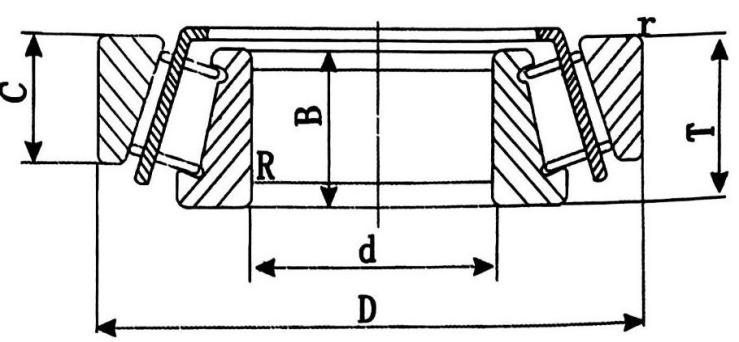

Structure drawing

Product parameter

序号 NO.	轴承型号 Bearing number		外形尺寸（mm）Dimension							额定动负荷Rate dynamic load Cr(Kn)	额定静负荷 Rate static load Cor(Kn)	重量 Weight(Kg)
序号 NO.	新型号 New Model	原型号 Old Model	d	D	B	C	T	Rmin	rmin	额定动负荷Rate dynamic load Cr(Kn)	额定静负荷 Rate static load Cor(Kn)	重量 Weight(Kg)
1	31305	27305E	25	62	17	13	18.25	1.5	1.5	40.7	43.3	0.262
2	31306	27306E	30	72	19	14	20.75	1.5	1.5	52.4	60.4	0.392
3	31307	27307E	35	80	21	15	22.75	2	1.5	65.7	76.8	0.514
4	31308	27308E	40	90	23	17	25.25	2	1.5	81.4	96.4	0.727
5	31309	27309E	45	100	25	18	27.25	2	1.5	95.6	113.8	0.944
6	31310	27310E	50	110	27	19	29.25	2.5	2	108	128.5	1.23
7	31311	27311E	55	120	29	21	31.5	2.5	2	129.9	158	1.57
8	31312	27312E	60	130	31	22	33.5	3	2.5	145.4	176.8	1.92
9	31313	27313E	65	140	33	23	36	3	2.5	165.7	202.6	2.39
10	31314	27314E	70	150	35	25	38	3	2.5	186.9	231	2.87
11	31315	27315E	75	160	37	26	40	3	2.5	208.5	258.9	3.38
12	31316	27316E	80	170	39	27	42.5	3	2.5	229.8	287.1	4.05
13	31317	27317E	85	180	41	28	44.5	4	3	253.9	319.1	4.69
14	31318	27318E	90	190	43	30	46.5	4	3	281.7	357.1	5.46
15	31319	27319E	95	200	45	32	49.5	4	3	292	355	6.64
16	31320	27320E	100	215	51	35	56.5	4	3	374	465	8.59
17	31321	27321E	105	225	53	36	58	4	3	402	500	9.58
18	31322	27322E	110	240	57	38	63	4	3	458	610	12.1
19	31324	27324E	120	260	62	42	68	4	3	539	695	15.3
20	31326	27326E	130	280	66	44	72	5	4	605	780	18.4
21	31328	27328E	140	300	70	47	77	5	4	693	900	22.8
22	31330	27330E	150	320	75	50	82	5	4	781	1020	25.2
23	31332	27332E	160	340			88					29.9
24	31334	27334E
25	31336	27336E	180	380			98					46.4

Product features:

Product feature:Tapered roller bearings can bear radial an d axial joint loadl.It has inner and outer conicaraceway, in which taper rollers are arran ged. Al the projection lines of the con esueface are meeting at thesame point of bearings axis. Tapered roller bearings is usually a separated type bearings, that is, the innercomposents con sisting of inner cine, rolleys and cage and cup can be installed separately.

Application introduction:

Tapered roller bearings are widely used in au tomobiles, mill,minin g,metallurgyplastics machinery an d otherin dustries.

Packaging and delivery

It has grown steadily in the market competition and established a good reputation and credibility in the industry. In the future, Shanghai Baiqi Bearing will continue to uphold the concept of "honest management and excellence", continue to innovate and develop, and create greater value for customers.

Inspection

The company has advanced production equipment and technical teams. Its products cover various types of rolling bearings, deep groove ball bearings, tapered roller bearings and other series, which are widely used in mechanical equipment, automotive industry, aerospace and other fields.

FAQ

Q: What are your payment terms?

A: Payment <= 1000 USD, 100% USD in advance. Payment > = $1000, 30% T/T in advance, balance before delivery.

Q: Do you provide samples? Is it free or extra?

A: Yes, we can provide samples free of charge, but we don't pay for shipping.

Q: What is your lead time?

A: If the goods are in stock, it is usually 5-10 days. Or, if the goods are not in stock, then 15-20 days, it is based on quantity.

Q: Are you a trading company or a manufacturer?

A: We are a factory!
